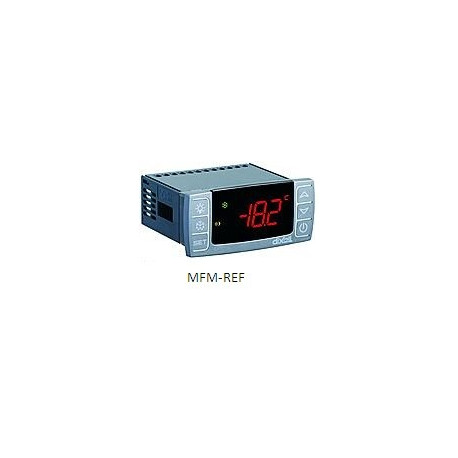

XR30CX Dixell-Copeland 12V 20A Electronic temperature controller
  • XR30CX Dixell-Copeland 12V 20A Electronic temperature controller

XR30CX-0N0C1 Dixell 12V 20A temperature controller

€85.28
Tax excluded

Dixell-Copeland XR30CX-0N0C1 12V 20A Electronic temperature controller

  • Dixell-Copeland XR30CX-0N0C1 recessed temperature controller
  • 12 Volt
Quantity

EXPERT ADVICE

Professionals in refrigeration technology

SINCE 1986

Since 1986 in refrigeration technology

FACTORY GUARANTEE

You have Always genuine manufacturer's warranty

CUSTOMER SERVICE

+31(0)617832515

info@mfmref.com
Description

XR30CX-0N0C1 Dixell-Copeland 12V 20A Electronic temperature controller

Model XR30CX, format 32 x 74 mm, is a digital thermostat with off cycle defrost designed for

refrigeration applications at normal temperature. It provides two relay outputs, one for the

compressor, the other one can be used as light, for alarm signalling or as auxiliary output.. It

is also provided with 2 NTC or PTC probe inputs, the first one for temperature control, the

second one, optional, to connect to the HOT KEY terminals to signal the condenser

temperature alarm or to display a temperature. The digital input can operate as third

temperature probe.

The HOT KEY output allows to connect the unit, by means of the external module XJ485-CX,

to a network line ModBUS-RTU compatible such as the dIXEL monitoring units of X-WEB

family. It allows to program the controller by means the HOT KEY programming keyboard.

The instrument is fully configurable through special parameters that can be easily

programmed through the keyboard.

Product Details
MFMREF153802100968

Specific References
