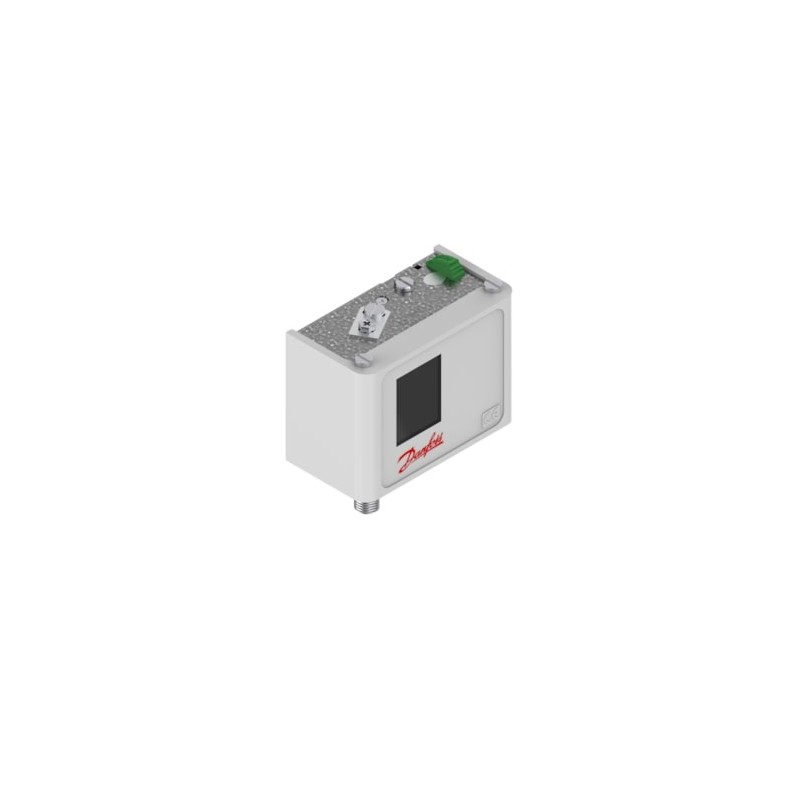

KP5A Danfoss Pressure switche high pressure 060-123066

KP5A Danfoss Pressure switche high pressure 060-123066

for non-corrosive refrigerants - R717 (NH3).

1m capillary pipe with M10 x 0.75 connection.

Weight 0.443 [kg]

Ambient temperature [° C] -40 - 65 ° C

Ambient temperature [° F] -40 To 149 ° F

Temp range. [° C] -40 - 65 ° C

Temp range. [° F] -40 To 149 ° F

Tag BV, c UL us UL873, C22.2 CS, CCC, CE, DNV, GL, LR, RINA, RMRS

Contact Function SPDT

Class Contact AC1 = 16 A, 400 V

Class Contact AC15 = 10 A, 400 V

Class Contact AC3 = 16 A, 400 V

Class Contact DC13 = 12 W, 220 V

Class Contact LR 112 A, 400 V

Differential [bar] 1.80 to 6.00 bar

Differential [psi] 26.00 to 87.00 psi

EAN 5702428011990

Comments conn. Power Rubber cable gland

Electrical connection size 6-14 mm

Protection IP44

Max pressure test. [Bar] Pe 35.0 bar

Max. working pressure [bar] 35.0 bar

Max. pres. work 510 Psig

Max. working pressure [bar] Pe 35.0 bar

Max. pressure [psig] Pe 510.0 psig

Rating Nema (~) 2

Pressure port M 10 x 0.75

Standard pressure connection ISO 261

Pressure Male / Female Male

Pressure range Category HIGH PRESSURE

Pressure sensor element Bellows

Product Description Pressure Control

Coolant (s) HCFC

Coolant (s) Non flam HFC

Coolant (s) R717

Regulation range [bar] Pe 8.00 to 32.00 bar

Regulation range [psig] Pe 116.00 to 464.00 psig

Reset function Car

Filename UL approval E31024
