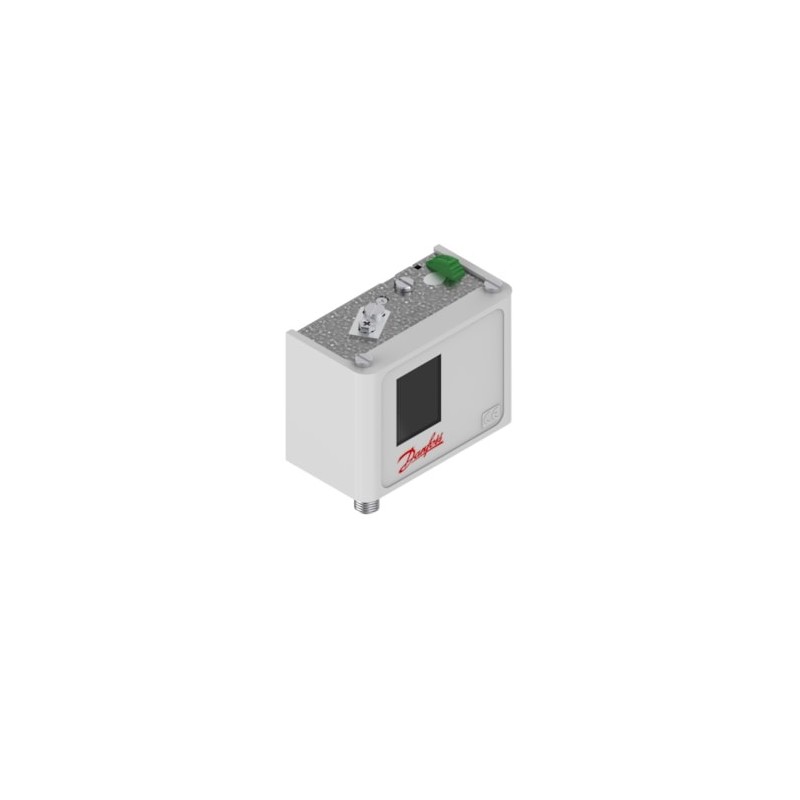

KP1A Danfoss Pressure switche low pressure 060-116166

KP1A Danfoss Pressure switche Low Pressure 060-116166

for non-corrosive refrigerants -- R717 ( NH3) -capilliare manual  M10 x 0,75 connection

Ambient temperature [° C] -25 - 65 ° C

Ambient temperature [° F] -13 To 149 ° F

Temp range. [° C] -25 - 65 ° C

Temp range. [° F] -25 - 65 ° C

Tag BV, c UL us UL873, C22.2 CS, CCC, CE, DNV, GL, LR, PED, RINA, RMRS

Contact Function SPDT

Class Contact AC1 = 16 A, 400 V

Class Contact AC15 = 10 A, 400 V

Class Contact AC3 = 16 A, 400 V

Class Contact DC13 = 12 W, 220 V

Class Contact LR 112 A, 400 V

Differential [bar] 0.70 bar

Differential [psi] 10.00 psi

EAN 5702428015974

Comments conn. Power Rubber cable gland

Electrical connection size 6-14 mm

Protection IP30

Max pressure test. [Bar] Pe 20.0 bar

Max. working pressure [bar] 17.0 bar

Max. pres. work 245 psig

Max. working pressure [bar] Pe 17.0 bar

Max. pressure [psig] Pe 245.0 psig

Rating Nema (~) 1

Pressure port M 10 x 0.75

Standard pressure connection ISO 261

Pressure Male / Female Male

Pressure range Category Low pressure

Pressure sensor element Bellows

Product Description Pressure Control

Coolant (s) HCFC

Coolant (s) Non flam HFC

Coolant (s) R717

Range regulation 27 inHg - 101 psig

Regulation range [bar] Pe -0.90 To 7.00 bar

Reset function Min

Filename UL approval E31024

ring E31024
